TAG Tow Ball Mount Kit and Direct Fit Wiring Harness for Toyota Landcruiser 200 Series (08/2007 - 12/2021)
Additional product details

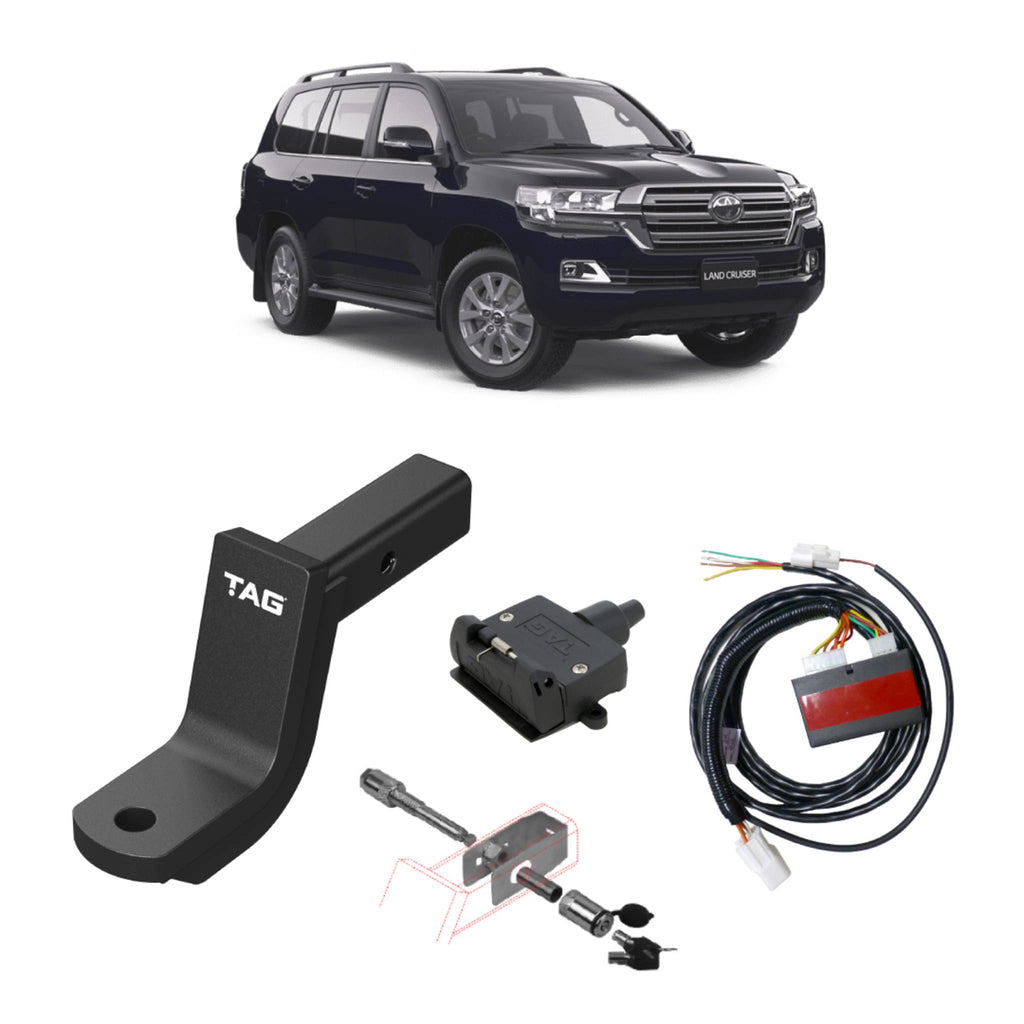

This kit includes
TAG Tow Ball Mount
TAG Direct Fit Wiring Harnerss
TAG 7 Pin Flat Socket – Vehicle Side

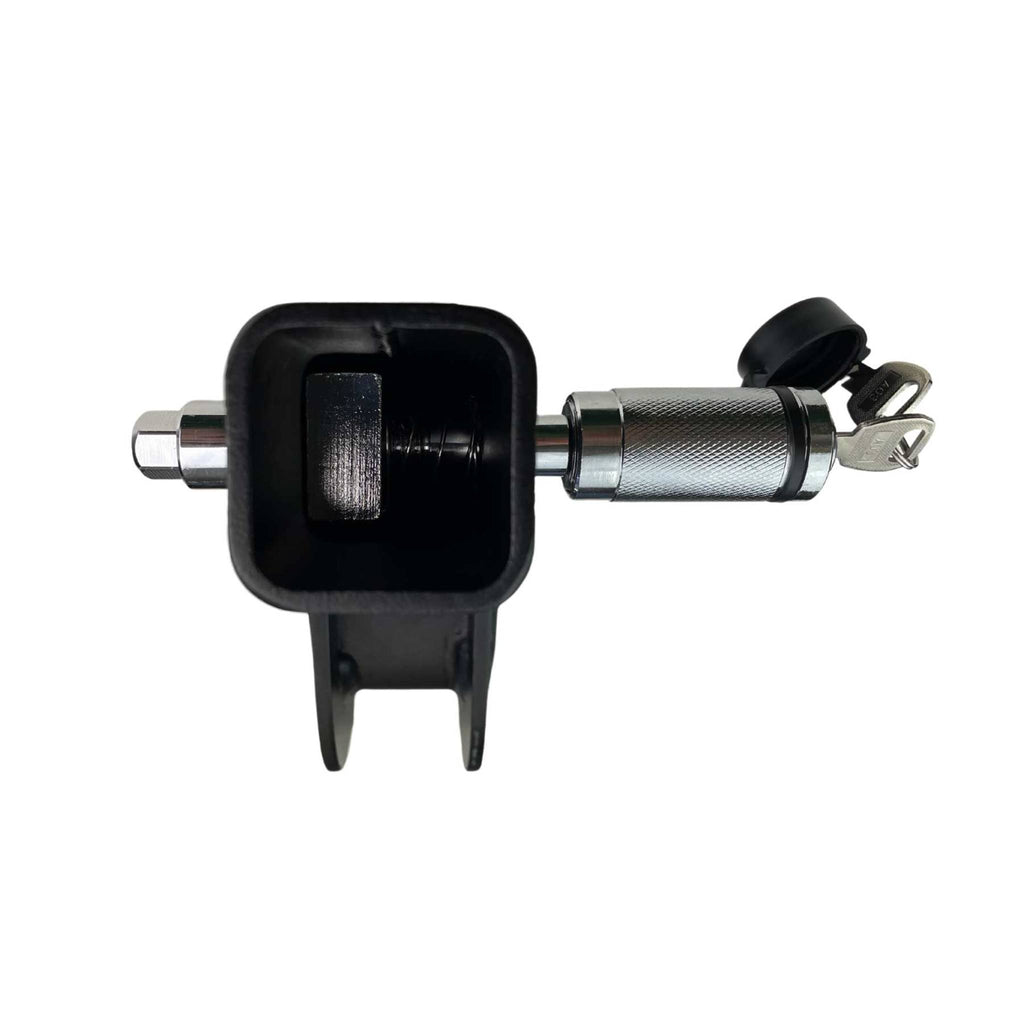

TAG Anti Rattle Pin
TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.
Suits Toyota Landcruiser 200 Series

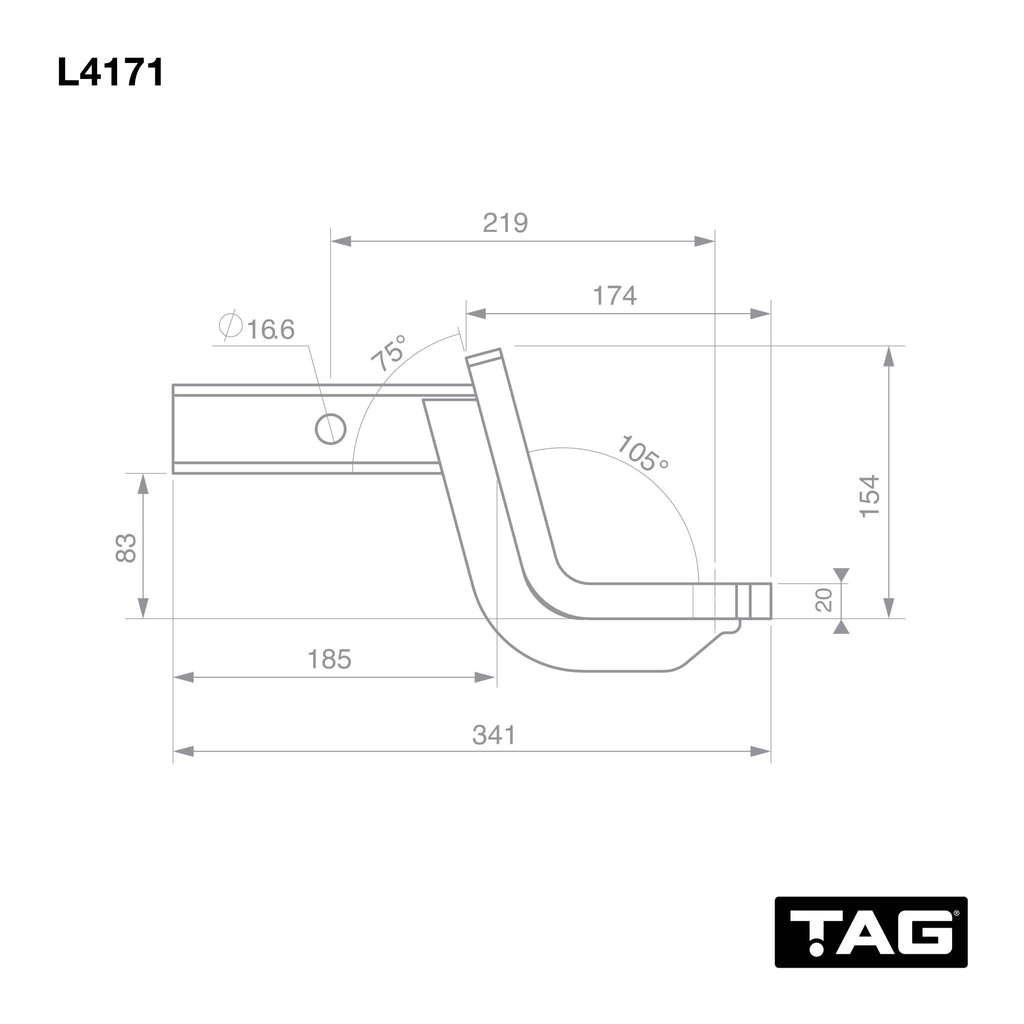

219mm Long (Hitch Pin Hole to Tow Ball Hole)
105° Tongue Face
Drop: 63mm
Can be mounted in Drop Mode Only
3500kg Gross Trailer Weight
350kg Ball Weight
Durable Powder-Coated Finish
ADR 62/02 Compliant
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Ball Weight [kg]: 350
- Hitch Type: Heavy Duty 50mm Square
- Drop: 88mm
- Rise: Cannot be used in Rise Mode
- Length: 341
- Length (Pin To Ball): 219mm
- Front to Pin (mm): 251
- Back to Pin (mm): 90
- Tongue Face: 105°
- Coating:
- Type: Security & Protection
- Wiring Option: Direct Fit Wiring Harness
- Reverse Sensor Cut Off: Not Applicable
- Style: 7 Pin Flat
Toyota Landcruiser (08/2007 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | LANDCRUISER | 10/2015 | - | Wagon | 200 Series | 1UR-FSE | 4.6L | Petrol | URJ200R | 4WD |
| TOYOTA | LANDCRUISER | 10/2015 | - | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R (with DPF) | 4WD |
| TOYOTA | LANDCRUISER | 10/2015 | - | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R (with DPF) | 4WD |
| TOYOTA | LANDCRUISER | 09/2007 | - | Wagon | 200 Series | 1GR-FE | 4.0L | Petrol | GRJ200R | Automatic/Manual 4WD |
| TOYOTA | LANDCRUISER | 10/2015 | 06/2021 | Wagon | VDJ200R | 1VD-FTV | 4.5L | Diesel | GX, LC200 ALTITUDE SPECIAL EDITION, LC200 GX | Automatic 4WD |
| TOYOTA | LANDCRUISER | 10/2015 | 12/2021 | Wagon | VDJ200R | 1VD-FTV | 4.5L | Diesel | GXL, LC200 GXL | Automatic 4WD |
| TOYOTA | LANDCRUISER | 10/2015 | 12/2021 | Wagon | VDJ200R | 1VD-FTV | 4.5L | Diesel | LC200 SAHARA, LC200 VX, SAHARA, VX | Automatic 4WD |
| TOYOTA | LANDCRUISER | 08/2015 | 06/2021 | Wagon | VDJ200 | 1VD-FTV | 4.5L | Diesel | D-4D | AWD |
| TOYOTA | LANDCRUISER | 03/2012 | 01/2020 | Wagon | 200 Series | 1UR-FSE | 4.6L | Petrol | URJ202R | Automatic 4WD |
| TOYOTA | LANDCRUISER | 03/2012 | 01/2020 | Wagon | 200 Series | 1UR-FSE | 4.6L | Petrol | URJ202R | Automatic 4WD |
| TOYOTA | LANDCRUISER | 01/2012 | 08/2019 | Wagon | URJ202 | 1UR-FE | 4.6L | Petrol | V8 | 4WD |
| TOYOTA | LANDCRUISER | 11/2011 | 09/2015 | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R | Automatic 4WD |
| TOYOTA | LANDCRUISER | 11/2007 | 09/2015 | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R | Automatic 4WD |
| TOYOTA | LANDCRUISER | 11/2007 | 09/2015 | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R | 4WD |
| TOYOTA | LANDCRUISER | 11/2007 | 09/2015 | Wagon | 200 Series | 1VD-FTV | 4.5L | Diesel | VDJ200R | Automatic 4WD |
| TOYOTA | LANDCRUISER | 09/2007 | 07/2015 | Wagon | VDJ200 | 1VD-FTV | 4.5L | Diesel | D-4D | 4WD |
| TOYOTA | LANDCRUISER | 09/2007 | 07/2015 | Wagon | VDJ200 | 1VD-FTV | 4.5L | Diesel | D-4D | 4WD |
| TOYOTA | LANDCRUISER | 08/2007 | 01/2012 | Wagon | UZJ200 | 2UZ-FE | 4.7L | Petrol | V8 | 4WD |
